Deploy & Verify ECS Fargate Service

Step 1 – Task Definition is Managed by Terraform

The LiveCap task definition is managed entirely by Terraform – do not register task definitions manually from a JSON file. When you update the image tag in a Terraform variable and run terraform apply, Terraform automatically registers a new task definition revision and triggers a rolling update on the ECS service.

Key fields in the actual task definition:

To inspect the currently running revision:

aws ecs describe-task-definition `
  --task-definition livecap-target-backend-dev `
  --region ap-southeast-1 --profile <aws-profile> `
  --query "taskDefinition.{Family:family, Revision:revision, Image:containerDefinitions[0].image}"

Step 2 – Update the ECS Service via Terraform

The correct service in the cluster is livecap-target-service-dev. Terraform is the recommended way to update the service – it handles dependency ordering correctly and prevents drift:

# Check current service status
aws ecs describe-services `
  --cluster livecap-cluster-dev `
  --services livecap-target-service-dev `
  --region ap-southeast-1 --profile <aws-profile> `
  --query "services[0].{Status:status, Running:runningCount, Desired:desiredCount}"

If you need to force-deploy a new revision outside Terraform (dev only):

$cluster = "livecap-cluster-dev"
$service = "livecap-target-service-dev"
$taskDef = "livecap-target-backend-dev:<revision>"  # replace with actual revision number

aws ecs update-service `
  --cluster $cluster `
  --service $service `
  --task-definition $taskDef `
  --force-new-deployment `
  --region ap-southeast-1 `
  --profile <aws-profile>

# Wait until the service is stable
aws ecs wait services-stable `
  --cluster $cluster `
  --services $service `
  --region ap-southeast-1 `
  --profile <aws-profile>

Step 3 – Verify the Service is Running

Check the service status from the console or CLI:

aws ecs describe-services `
  --cluster livecap-cluster-dev `
  --services livecap-target-service-dev `
  --region ap-southeast-1 --profile <aws-profile> `
  --query "services[0].{Status:status,Running:runningCount,Desired:desiredCount}"

Expected output:

{
  "Status": "ACTIVE",
  "Running": 1,
  "Desired": 1
}

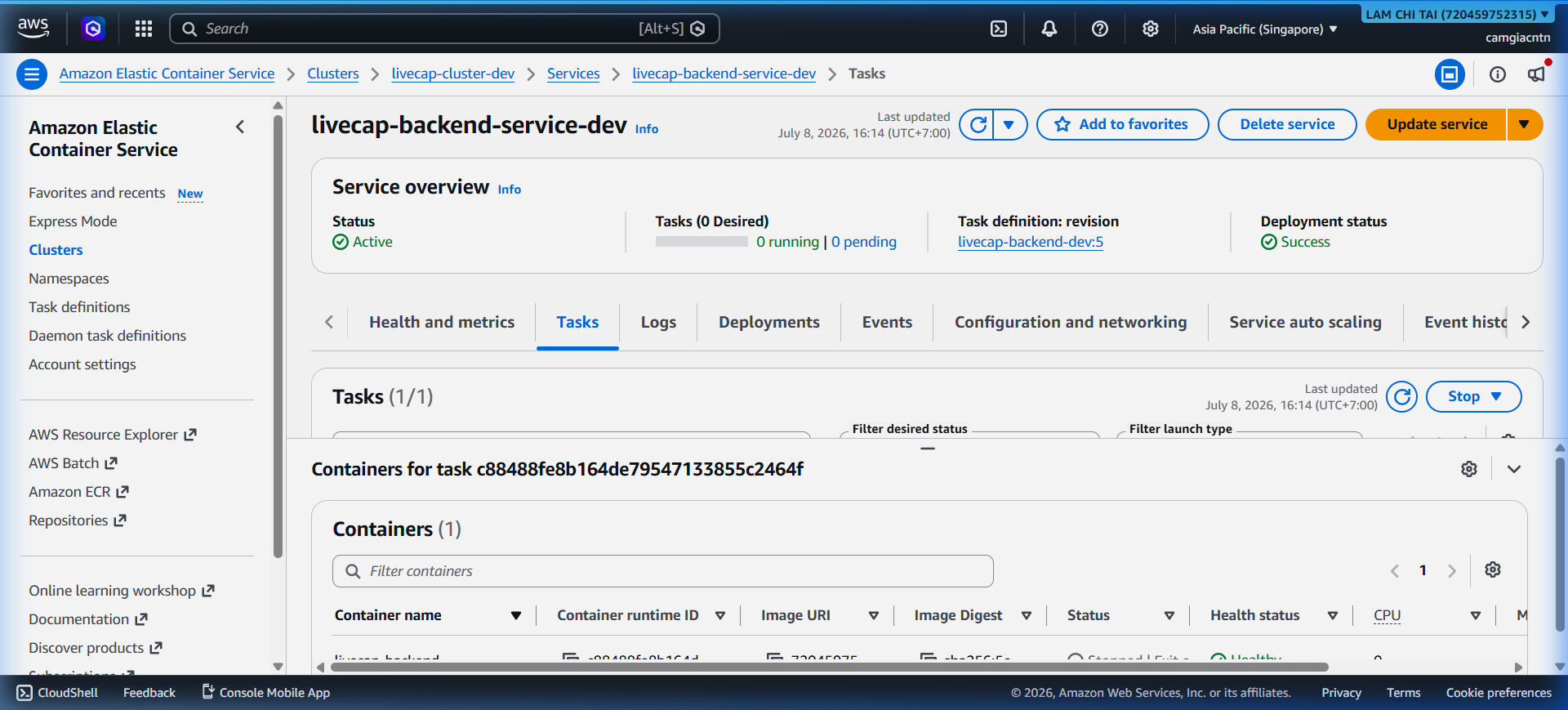

The AWS Console shows the service with one running task:

Step 4 – Verify the ALB Health Check

The ALB checks /api/health on port 8000 every 30 seconds. Only targets that pass the health check receive traffic.

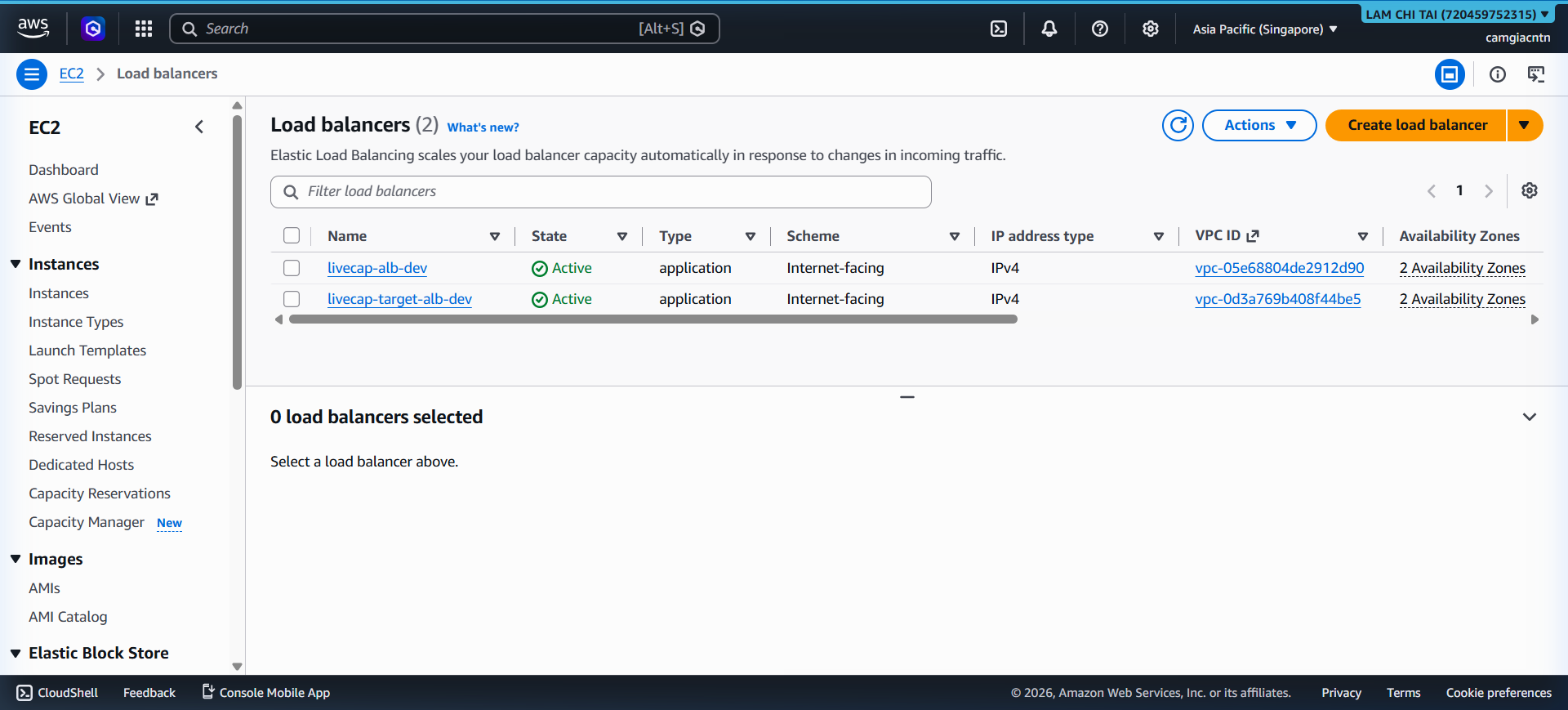

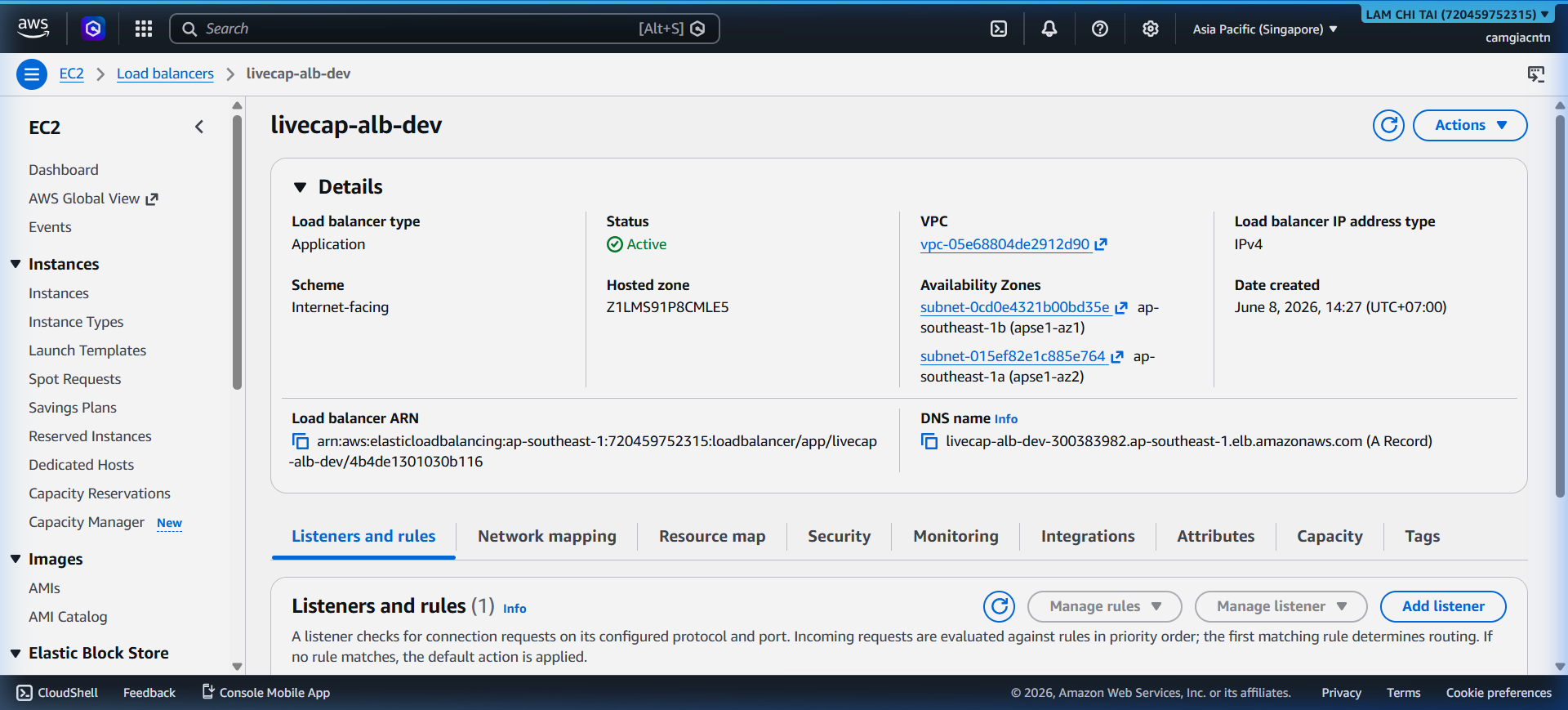

View the ALB and its target group in the console:

Test the health endpoint directly through CloudFront:

Invoke-RestMethod https://dpeohr327wt9l.cloudfront.net/api/health

Expected response:

{"status": "healthy", "version": "1.0.0"}

Step 5 – Verify the ECS Cluster

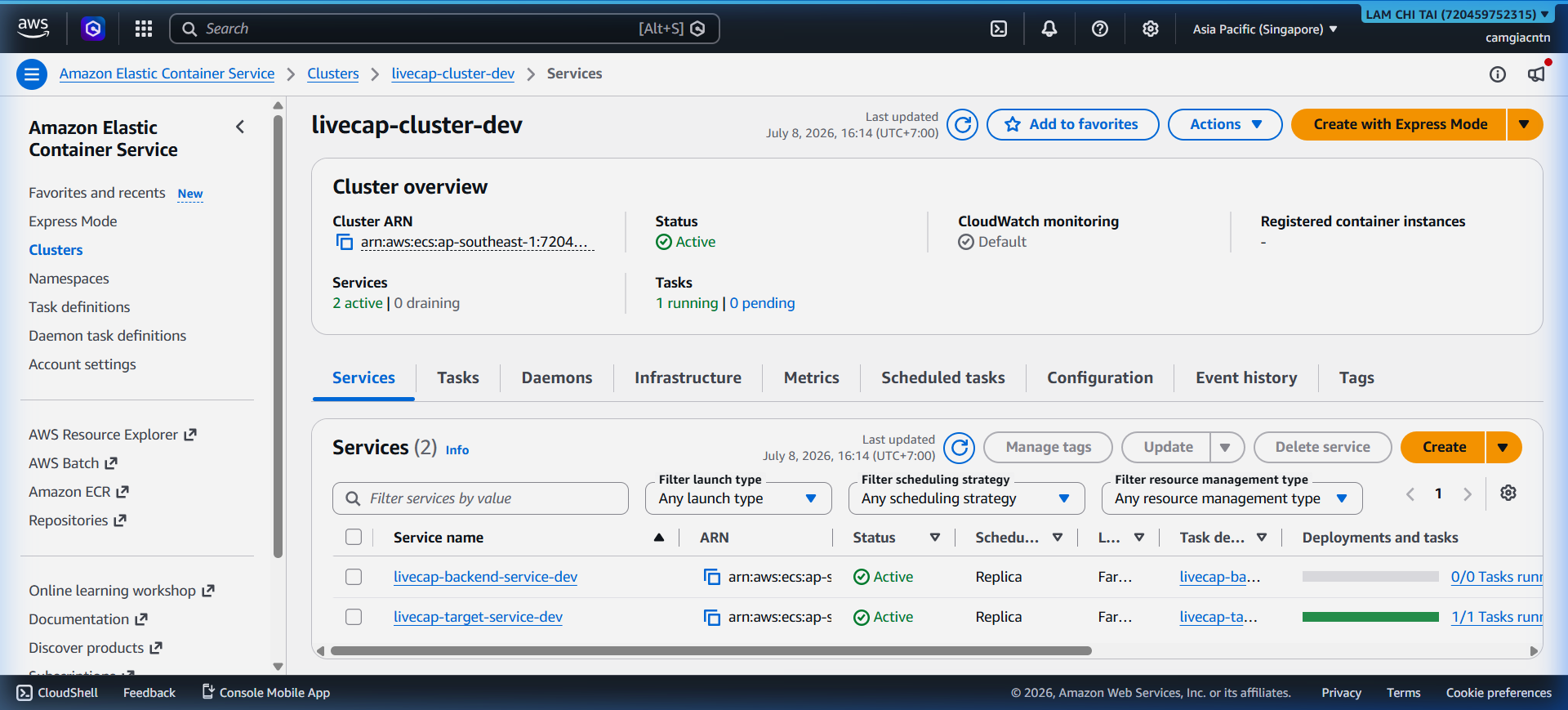

The cluster detail page shows all services, running tasks, and capacity providers. A healthy cluster has desired = running for all services.

Session Safety

Before the backend opens any Transcribe or Translate stream, it checks an in-memory session registry:

• Maximum 4 concurrent sessions globally (process-wide)
• Maximum 1 active session per client IP

Rejected clients receive a TOO_MANY_SESSIONS WebSocket close message without incurring any AI service cost. Every session exit path (stop, timeout, error, disconnect) cleans up audio queues, worker tasks, and the registry entry.
